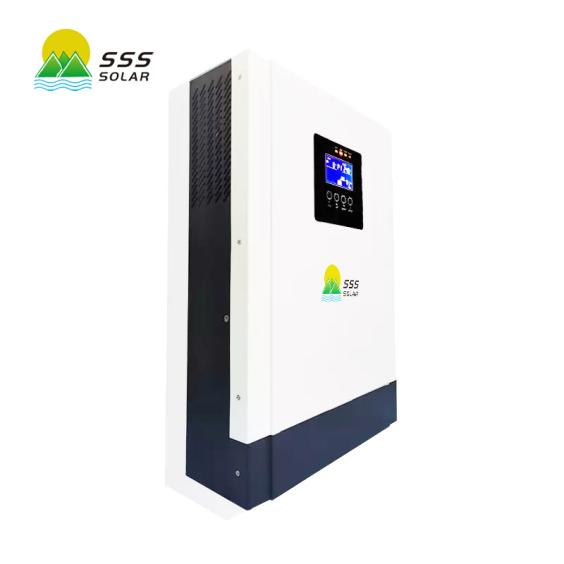

Single Phase Off-Grid Grid Connected 3kw 5kw Solar Inverter
Single Phase Off-Grid Grid Connected 3kw 5kw Solar Inverter
Parallel Connection Solar Inverter Up To 9 PCS
Parallel Connection Solar Inverter Up To 9 PCS
Key Feature
• Pure sine wave off-grid optical storage integrated machine
• Output power factor 1
• Optional high-power charging current
• Wide DC input range
Detailed Information
• Optional input voltage range for household appliances andpersonal computers
• The mains/solar input priority can be configured through the LCD
setting to be compatible with AC power or generator power
• Automatic restart when the utility power is restored, overload and short circuit protection
• Smart battery charger design to optimize battery performance
• Cold start function, optional dust net,support generator
Product specifications
• The mains/solar input priority can be configured through the LCD
setting to be compatible with AC power or generator power
• Automatic restart when the utility power is restored, overload and short circuit protection
• Smart battery charger design to optimize battery performance
• Cold start function, optional dust net,support generator
Product specifications
Rated Capacity | 3000VA/3000W | 5000VA/5000W | |
Model HP-PV | HP-PV3K-24 | HP-PV5K-48 (9 parallel machines) | |
Enter | Input System | L+N+PE | |
Rated Input Voltage | 208/220/230/240VAC | ||
Voltage Range | 170 〜280VAC (computerequipmenty; 90 〜280VAC (household appliance) | ||
Frequency Range | 5OHz/60Hz (adaptive) | ||
Output | Output System | L+N+PE | |
The Output Voltage | 20B/220/230/240VAC±5% | ||
Output frequency | 50/60Hz±0.1% | ||
Waveform | Pure String Wave | ||
Switch Time | computer equipment 10ms, household appliances 10ms | ||
Peak Powser | 6000VA | 10000VA | |
Overload | Battery Mode: lmin@102%~110% Load | ||
Peak Efficiency (Battery Mode) | >93% | >94% | |
Battery | Rated Voltage | 24VDC | 48VDC |
Constant Voltage Charging Voltage (Can Be Set) | 28.2VDC | 56.4VDC | |
Floating Charge Charging Voltage (Can Be Set) | 27VDC | 54VDC | |
Charger | PV Charging Method | MPPT | MPPT |
PV Maximum Input Power | 1500W | 5500W | |
MPPT Tracking Range | 30-115VDC | 120-430VDC | |
Maximum PV Input Voltage | 145VDC | 450VDC | |
Maximum PV Charging current | 60A | 80A | |
| Maximum City Charge Charging Current | 60A | 80A | |
Maximum Charging Current | 120A | 80A | |
Show | LCD Interface | 2x8pin / PIITCH 2.54mm, support 128-bit segment code, up to 4 buttons +4LED, | |
RS232 | 5PIN/PITCH 2.0MM,Porter rate 2400 | ||
Interface | Expansion Slot Communication Interface | 2X SPIN / PITCH 2.54MM, lithium battery BMS communication card, WiFi card, dry interface card, etc. | |
Parallel Interface | Mac out function | Parallel function | |
Environmental | Run Ambient Temperature | 0~40°C | |
Operating Environment Humidity | 20~ 95%(No Condensation) | ||
Storage Temperature | -15-60rc | ||
Altitude | The altitude should not exceed 1000m, 1000m or more, up to 4000M, | ||
Noise | W50db | ||
Physical Parameters | Machine Size (mm) | 465*300*115mm | |
Package Dimensions (mm) | 515*365*175mm | ||
Weight (for reference) | 9.5 | 10 | |
| 10.5 | 11.5 | ||
